What Is Pixel Pitch? LED Wall Resolution, Explained
Leeor S.
Owner, Space Productions
5 min read
Pixel pitch is the distance, in millimeters, from the center of one LED pixel to the center of the next. The smaller the number, the more pixels in every square foot, the sharper the image up close — and the higher the price. As a rule of thumb, the pitch in millimeters is about the closest comfortable viewing distance in meters.
Key takeaways
- Pixel pitch is the center-to-center distance between LED pixels, in millimeters — P2.6 means 2.6 mm. It’s also called dot pitch or LED pitch.
- Rule of thumb: the pitch in mm ≈ the closest comfortable viewing distance in meters; choose it for the front row and the camera.
- Halving the pitch quadruples the pixels — and much of the cost — so don’t buy resolution nobody stands close enough to see.
In this article
Every LED wall spec sheet leads with a number like P2.6 or P3.9. That number is the pixel pitch, and it quietly decides three things about your wall: how close people can stand before the image breaks into dots, how much detail the wall can show, and a large share of what it costs. Here’s what it means, and how to pick one.
Pixel pitch, defined
An LED wall is made of pixels, and each pixel is a tiny cluster of red, green, and blue LEDs. Pixel pitch is the center-to-center distance between two neighboring pixels, measured in millimeters. A P2.6 panel has 2.6 mm between pixel centers; a P3.9 panel has 3.9 mm. You’ll also see it called dot pitch or LED pitch — they all mean the same measurement.
Pixel pitch chart: which pitch for which event
| Pixel pitch | Closest comfortable viewing distance | Typical event use |
|---|---|---|
| 1.2–1.9 mm | About 1.2–1.9 m (4–6 ft) | Broadcast sets, boardrooms, cameras up close |
| 2.0–2.6 mm | About 2–2.6 m (7–9 ft) | Corporate keynotes and IMAG — the indoor workhorse |
| 2.9–3.9 mm | About 2.9–3.9 m (10–13 ft) | Large indoor stages, concerts, stage backdrops |
| 4.0–6.0 mm and up | About 4–6 m (13–20 ft) and beyond | Outdoor walls, festivals, long throws |
The rule works because at roughly that distance your eye stops resolving individual pixels and sees one continuous image. Closer than that, you start to see the grid. So pick the pitch for your closest important viewer — the front row, the lectern, or the camera shooting IMAG — not the average seat.
Why halving the pitch quadruples the pixels (and the price)
Pixel count scales with the square of the pitch. One square meter of 3.9 mm panel holds about 66,000 pixels; at 2.6 mm it’s about 148,000; at 1.9 mm, about 277,000. Halve the pitch and you get four times the LEDs to buy, drive, and power — which is why fine-pitch walls cost far more per square foot, and why LED wall rental cost moves so much with this one number.
How many pixels does an LED wall have?
Divide the wall’s width and height in millimeters by the pitch. A 16×9-foot wall — about 4,880 × 2,740 mm — works out to:
| Pitch | Resolution of a 16×9 ft wall | Compared with HD |
|---|---|---|
| 3.9 mm | About 1,250 × 700 pixels | Below 720p |
| 2.6 mm | About 1,875 × 1,055 pixels | Close to 1080p |
| 1.9 mm | About 2,565 × 1,445 pixels | Beyond 1080p, short of 4K |
That number matters for content: build graphics and video at the wall’s native pixel size, not a generic 1920×1080, or the processor scales everything and small type goes soft.
Pixel pitch on camera
Cameras are the most demanding viewers. When the wall’s pixel grid and the camera’s sensor grid interfere, you get moiré — shimmering bands across the image. A finer pitch, a longer lens from farther back, and letting the wall fall slightly out of focus all reduce it. If the event is on IMAG or streamed, tell your LED provider where the cameras will be before the pitch is chosen.
Indoor vs. outdoor pitch
Outdoor crowds stand farther back, so outdoor walls usually run 4 mm and coarser — which also leaves room for the brighter, weather-rated LEDs they need. More in indoor vs. outdoor LED walls.
How to choose a pitch without overspending
- Find your closest important viewer — including the camera — and start from the chart
- Don’t pay for resolution nobody will stand close enough to see
- Check the content: text-heavy slides want a finer pitch than video and motion graphics
- Settle brightness and size at the same time — see how to spec an LED wall
How we choose pitch

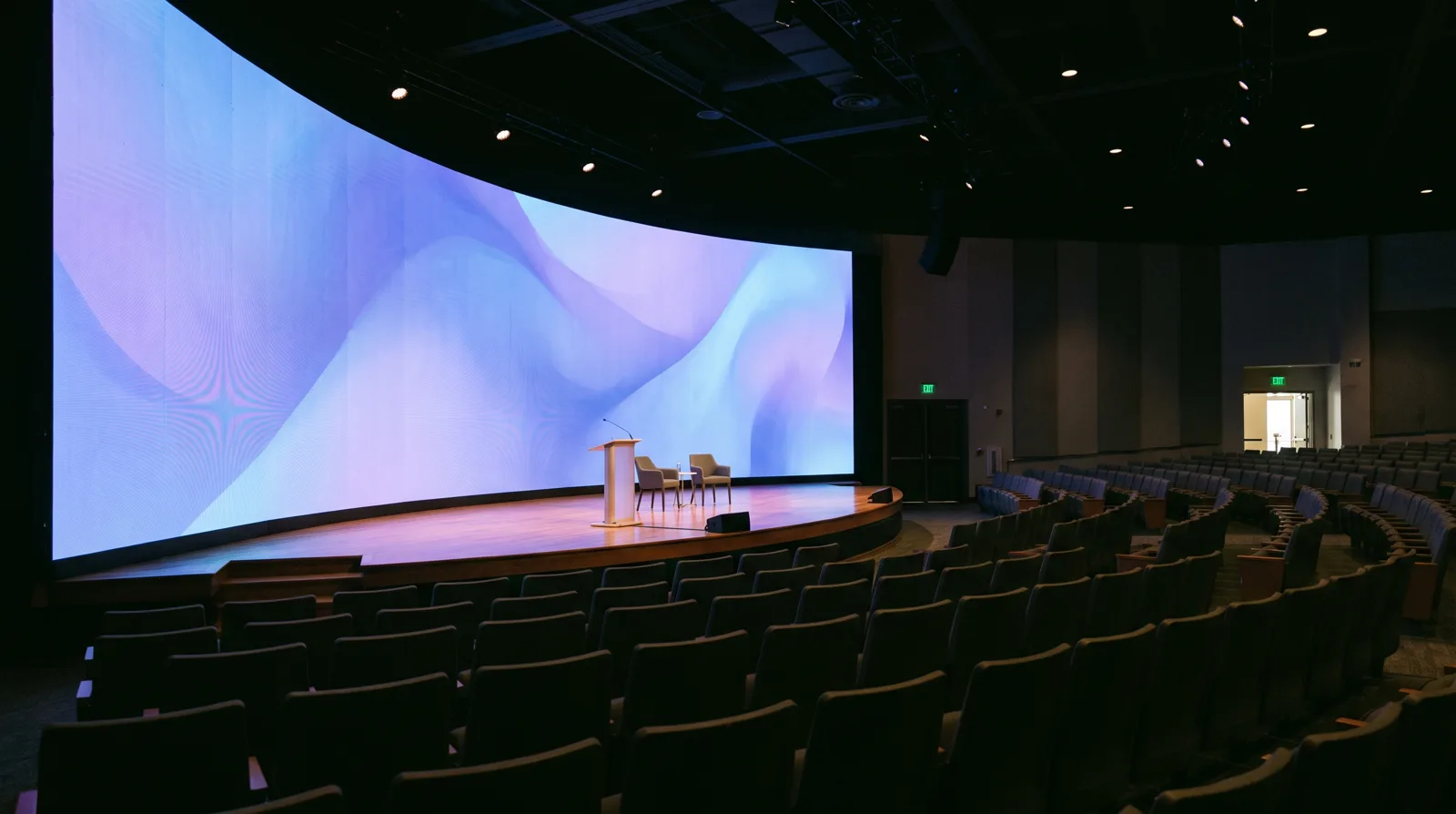

On a site walk we measure the throw, the sightlines, and the light, then spec the exact panel that reads everywhere it needs to — on camera and in the back row — without overspending on resolution nobody will see. For the Global Tech Summit keynote that meant a curved 40-foot wall at 2.6 mm, streamed to more than 10,000 remote attendees. See LED video wall rental, or send us the venue and the date.
Frequently asked questions
What is pixel pitch?
The center-to-center distance between two neighboring pixels on an LED display, measured in millimeters. A smaller pitch means more pixels per square foot, a sharper image up close, and a higher price.
What is pixel pitch sometimes called?
Dot pitch or LED pitch. All three names describe the same measurement: the distance in millimeters from the center of one pixel to the center of the next.
What does P2.6 mean on an LED wall?
It’s the pixel pitch: 2.6 millimeters between pixel centers. P3.9 means 3.9 mm, P1.9 means 1.9 mm, and so on — the lower the number, the finer the wall.
What pixel pitch do I need for an event?
Use the rule of thumb that the pitch in millimeters is about the closest comfortable viewing distance in meters. Corporate keynotes and IMAG usually run 2.0–2.6 mm, large indoor stages 2.9–3.9 mm, and outdoor walls 4 mm and up; broadcast sets and boardrooms go finer, to 1.2–1.9 mm.
Is a smaller pixel pitch always better?
Only if someone is close enough to see the difference. A finer pitch is sharper up close and better on camera, but it costs much more, and viewers beyond the rule-of-thumb distance can’t tell.
How do I calculate an LED wall’s resolution?
Divide the wall’s width and height in millimeters by the pixel pitch. A 16×9-foot wall (about 4,880 × 2,740 mm) at 2.6 mm is roughly 1,875 × 1,055 pixels — close to 1080p.
